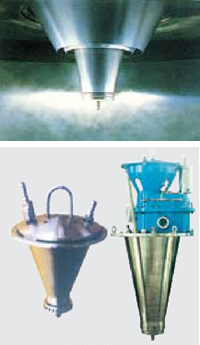

LPG Series High-Speed Centrifugal Spray Dryer
>> Applications
* Chemical Industry Sodium fluoride (potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic
silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
* Plastics and resin AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea -formaldehyde resin, formaldehyde resin, polythene, polychloroprene and etc.
* Food Industry Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats,chicken
juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
* Ceramic aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.
>> Attention to order
Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.Dry powder density residual water contents allowed, particle size, and maximum temperature allowed.Output: dailv shift time.
Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas.
Control requirement: whether or not the inlet and outlet temperatures should be controlled.
Powder-collecting requirement: whether it's necessary to use cloth bag filter and the requirement of the environment of the exhausted gas.
Other special requirements.
>> Dimensions
Size |
A |
B |
C |
D |
E1 |
E2 |
F |
G |
H |
I |
| LPG-25 |
1290 |
3410 |
4260 |
1800 |
1200 |
1200 |
1000 |
1700 |
1300 |
1550 |
| LPG-50 |
1730 |
4245 |
5100 |
2133 |
1640 |
1640 |
1250 |
1750 |
1800 |
1600 |
| LPG-100 |
2500 |
5300 |
6000 |
2560 |
2100 |
2100 |
1750 |
1930 |
2600 |
1780 |
| LPG-150 |
2800 |
6000 |
7000 |
2860 |
2180 |
2180 |
1970 |
2080 |
3050 |
1960 |
| LPG-200 |
2800 |
6600 |
7300 |
3200 |
2300 |
2300 |
2210 |
2250 |
3050 |
2100 |
| LPG-300 |
2800 |
8000 |
8700 |
3700 |
2800 |
2800 |
2520 |
2400 |
3050 |
2250 |
